芯達茂XD040H120AT1S3國產IBGT +FRD單管 40A 1200V TO-247-3L
40A 1200V TO-247-3L
24小時全國服務熱線：18902855590
24小時全國服務熱線：18902855590
首頁 ? 產品中心 ? 芯達茂XDM

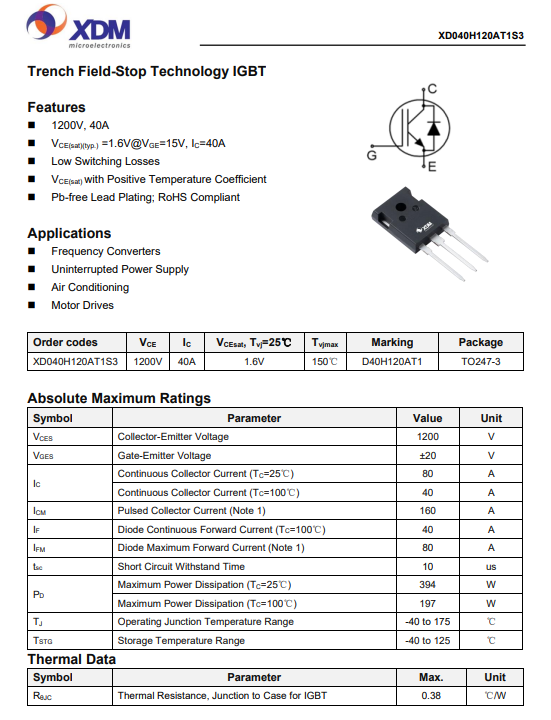

芯達茂XD040H120AT1S3
Trench Field-Stop Technology IGBT Features
? 1200V, 40A
? VCE(sat)(typ.) =1.6V@VGE=15V, IC=40A
? Low Switching Losses
? VCE(sat) with Positive Temperature Coefficient
? Pb-free Lead Plating; RoHS Compliant Applications
? Frequency Converters
? Uninterrupted Power Supply
? Air Conditioning
? Motor Drives
